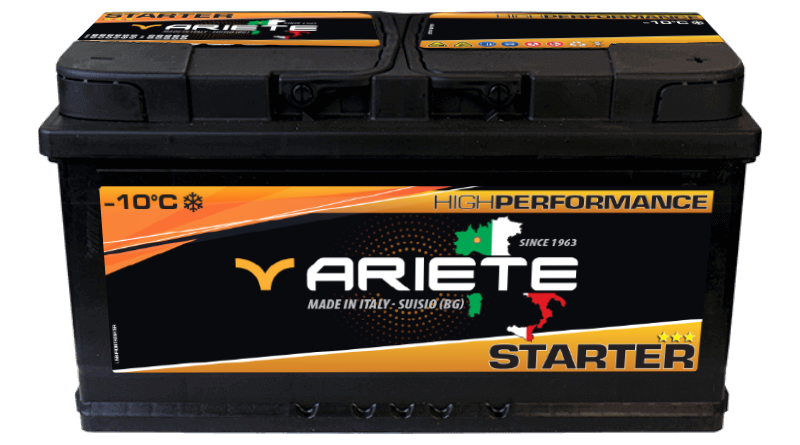

Linea
STARTER
Linea
STARTER
Linea
STARTER
| BOX | V | (AH) | EN (A) | L | W | H | L.H | LAYOUT | TERMINAL | TALLONI |
|---|---|---|---|---|---|---|---|---|---|---|
| L0 | 12 | 44 | 390 | 175 | 175 | 190 | ||||
| L0 | 12 | 44 | 380 | 175 | 175 | 190 | - | 0 | A | B3 |
| L1 | 12 | 44 | 310 | 210 | 175 | 190 | - | 0 | A | B3 |
| L1 | 12 | 52 | 380 | 210 | 175 | 190 | - | 0 | A | B3 |
| L1 | 12 | 55 | 460 | 210 | 175 | 190 | - | 0 | A | B3 |
| L1B | 12 | 52 | 380 | 210 | 175 | 175 | - | 0 | A | B3 |
| L2 | 12 | 55 | 400 | 242 | 175 | 190 | - | 0 | A | B3 |
| L2 | 12 | 62 | 480 | 242 | 175 | 190 | - | 0 | A | B3 |
| L2 | 12 | 62 | 520 | 242 | 175 | 190 | - | 0 | A | B3 |
| L2B | 12 | 62 | 460 | 242 | 175 | 175 | - | 0 | A | B3 |
| L3 | 12 | 80 | 600 | 276 | 175 | 190 | - | 0 | A | B3 |
| L3 | 12 | 80 | 620 | 276 | 175 | 190 | - | 0 | A | B3 |
| L3B | 12 | 80 | 640 | 278 | 175 | 175 | - | 0 | A | B3 |
| L4 | 12 | 100 | 720 | 310 | 175 | 190 | - | 0 | A | B3 |
| L4 | 12 | 100 | 800 | 310 | 175 | 190 | - | 0 | A | B3 |
| L4B | 12 | 90 | 750 | 310 | 175 | 175 | - | 0 | A | B3 |
| L5 | 12 | 100 | 820 | 353 | 175 | 190 | - | 0 | A | B3 |
| L5B | 12 | 95 | 730 | 353 | 175 | 175 | - | 0 | A | B3 |
| L1B | 12 | 52 | 380 | 210 | 175 | 175 | - | 0 | A | B3 |
| L1B | 12 | 45 | 460 | 207 | 175 | 175 | ||||
| L2B | 12 | 62 | 460 | 242 | 175 | 175 | - | 0 | A | B3 |
| L2B | 12 | 62 | 560 | 242 | 175 | 190 | - | 0 | A | B3 |
| L2B | 12 | 55 | 520 | 241 | 175 | 175 | ||||
| L3B | 12 | 80 | 620 | 276 | 175 | 175 | - | 0 | A | B3 |
| L3B | 12 | 66 | 713 | 276 | 175 | 175 | ||||
| L3B | 12 | 80 | 660 | 276 | 175 | 175 | - | 0 | A | B |
| L1 | 12 | 44 | 350 | 210 | 175 | 190 | - | 0 | A | B3 |
| L1 | 12 | 52 | 380 | 207 | 175 | 190 | - | 0 | A | B3 |
| L1 SX | 12 | 52 | 380 | 207 | 175 | 190 | - | 1 | A | B3 |
| L1 | 12 | 44 | 390 | 207 | 175 | 190 | ||||
| L1 | 12 | 55 | 450 | 207 | 175 | 190 | - | 0 | A | B3 |
| L1 | 12 | 55 | 510 | 207 | 175 | 190 | ||||
| L1 | 12 | 50 | 490 | 207 | 175 | 190 | ||||
| L1 | 12 | 55 | 510 | 207 | 175 | 190 | ||||
| L2 | 12 | 55 | 450 | 242 | 175 | 190 | - | 0 | A | B3 |
| L2 | 12 | 62 | 500 | 242 | 175 | 190 | - | 0 | A | B3 |
| L2 | 12 | 55 | 535 | 241 | 175 | 190 | ||||
| L2 SX | 12 | 62 | 500 | 242 | 175 | 190 | - | 1 | A | B3 |
| L2 SX | 12 | 55 | 510 | 241 | 175 | 190 | ||||
| L3 | 12 | 70 | 600 | 278 | 175 | 190 | - | 0 | A | B3 |
| L3 | 12 | 80 | 600 | 278 | 175 | 190 | - | 0 | A | B3 |
| L3 | 12 | 80 | 680 | 278 | 175 | 190 | - | 0 | A | B3 |
| L3 | 12 | 80 | 720 | 276 | 175 | 190 | ||||
| L3 | 12 | 68 | 690 | 276 | 175 | 190 | ||||
| L3 SX | 12 | 80 | 640 | 278 | 175 | 190 | - | 1 | A | B3 |
| L3 SX | 12 | 66 | 600 | 276 | 175 | 190 | ||||
| L4 SX | 12 | 90 | 750 | 310 | 175 | 190 | - | 1 | A | B3 |
| L5 | 12 | 100 | 690 | 353 | 175 | 190 | - | 0 | A | B3 |
| GR28P | 12 | 100 | 740 | 304 | 185 | 200 | 0 | A | B3 | |
| GR28 | 12 | 100 | 780 | 304 | 185 | 200 | 205 | 0 | A | B3 |
| GR28 | 12 | 100 | 720 | 330 | 177 | 215 | ||||
| GR28 | 12 | 100 | 780 | 330 | 177 | 215 | ||||
| GR28 | 12 | 100 | 780 | 304 | 185 | 200 | 205 | 1 | A | B3 |
| GR28 SX | 12 | 100 | 720 | 330 | 177 | 215 | ||||
| GR28 SX | 12 | 100 | 760 | 330 | 177 | 215 | ||||
| COMPACT B | 12 | 105 | 720 | 345 | 175 | 210 | 230 | A | B1 | |
| COMPACT B | 12 | 110 | 750 | 345 | 175 | 210 | 230 | A | B1 | |
| COMPACT B | 12 | 110 | 760 | 345 | 175 | 210 | 230 | 0 | A | B1 |
| COMPACT B | 12 | 120 | 820 | 345 | 175 | 210 | 230 | 0 | A | B0 |
| COMPACT B SX | 12 | 120 | 820 | 345 | 175 | 210 | 230 | 1 | A | B1 |
| COMPACT A | 12 | 105 | 720 | 349 | 175 | 270 | 290 | A | B0 | |
| COMPACT A | 12 | 130 | 830 | 349 | 175 | 270 | 290 | A | B0 |
